| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | YUHONG |
| Chứng nhận: | ISO13485:2016 |
| Số mô hình: | 10G-34G |
| Số lượng đặt hàng tối thiểu: | 50 kg |
|---|---|
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | Hộp carton, hộp nhựa, vỏ gỗ dán |
| Thời gian giao hàng: | 15 - 45 ngày làm việc |
| Điều khoản thanh toán: | T/t, l/c |
| Khả năng cung cấp: | 13 tỷ mảnh mỗi năm |
| Máy đo ống kim: | 10G-34G | Kiểu dày thành ống kim: | Bức tường thông thường, tường mỏng, tường mỏng mỏng, tường cực mỏng |
|---|---|---|---|
| Chiều dài ống kim: | Theo yêu cầu | Nguyên liệu ống kim: | SUS304 cấp y tế |
| Tiêu chuẩn ống kim: | ISO9626, ISO7864, v.v. | Điểm kim: | Điểm vát Lancet, điểm cùn, điểm Quincke, điểm mắt, điểm cắt ngược, điểm bút chì, v.v. |

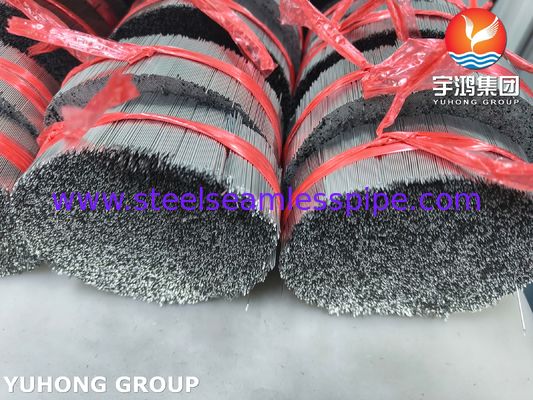

SUS304 Medical Needle Cannula , Stainless Steel Needle Tube For Injection ISO9626
Medical Needle Tubes/Cannulas are the main metal part of the injection needles. They’re specifically designed to be the core component of hypodermic needles for medical and pharmaceutical. These needle tubes are generally manufactured by medical grade stainless steel 304 raw material due to its good resistant to corrosion, good durability and high hardness. Injection needle tubes are usually firstly welded from SUS304 stainless steel strips into capillary tubes. Then they are processed through reducing outer/inner diameter, straightening, cleaning, annealing, cutting into fixed length. And the capillary tubes will be grinded by machines and form a bevelled needle tip. Finally, needle tubes will be mechanical polished, cleaned, dried, inspected, and packaged. Our company is good at producing medical needle tubes from 10 Gauge to 34 Gauge and professional in customizing special needle tubes special needle tips (eg., three-face bevel, five-face bevel, blunt, back-cut, back-eye, quincke tip, etc.) according to clients’ drawings. Our needle cannulas are mostly used for medical devices, like injection needles, infusion needles, blood lancet, irrigation needles, catheters, and so on. Their manufacture is complied with ISO9626, ISO7864 international standards.
Regular Size Chart:
| Gauge | Outer Diameter (mm) | Wall Thickness Type | Main Application Area |
| 18G | 1.27 mm | Regular Wall | Blood Collection, Rapid Fluid Infusion |
| 21G | 0.82 mm | Thin Wall | IV Injection, Blood Transfusion |
| 23G | 0.64 mm | Thin Wall | Pediatric IV Injection, Intramuscular Injections |
| 25G | 0.51 mm | Extra Thin Wall | Subcutaneous Injections (e.g., Insulin) |
| 27G | 0.41 mm | Ultra Thin Wall | Intradermal Injections, Allergy Testing |
| 30G | 0.31 mm | Ultra Thin Wall | Insulin Pens, Mesotheraphy Treatment |
Key Features:
Different Types of Needle Tip Shapes:

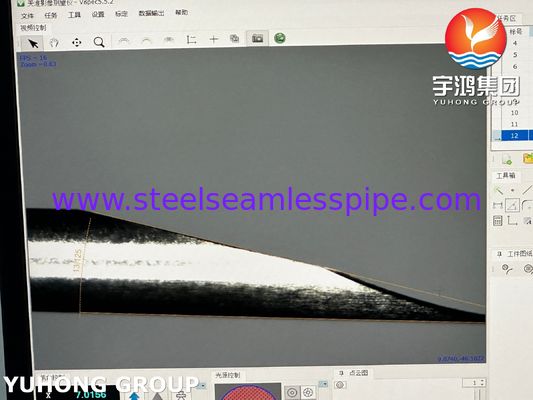

The needle tube is cut and ground to form the bevel tip. The tip shape and bevel angle are critical for penetration smoothness.
Main Injection Areas:
The gauge and length of the needle tube determine its application area.
Different Applications:
