| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | YUHONG |
| Chứng nhận: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Số mô hình: | 800 800H 800HT 825 UNS N08825 |
| Số lượng đặt hàng tối thiểu: | 500kg |
|---|---|
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | Gói hộp gỗ |
| Thời gian giao hàng: | 10-15 ngày |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 1000TẤN MỖI THÁNG |
| thông số kỹ thuật: | ASTM B163 | Vật liệu: | UNS N08825 / Incoloy 825 / Hợp kim 825 |
|---|---|---|---|
| Kích cỡ: | Theo yêu cầu của khách hàng | bưu kiện: | Vỏ gỗ / Vỏ sắt / Bó có nắp nhựa |
| Làm nổi bật: | ASTM B163 Nickel Alloy seamless tube,Monel 400 heat exchanger tube,Nickel Alloy condenser tube |
||

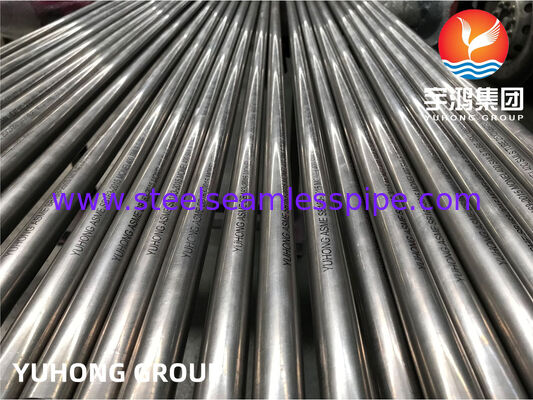

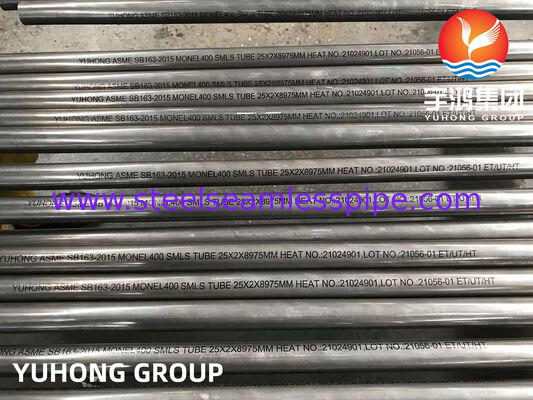

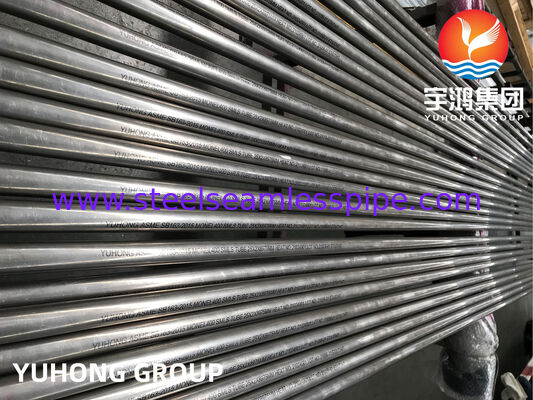

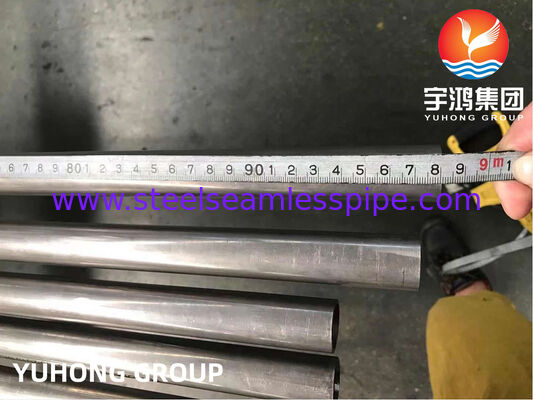

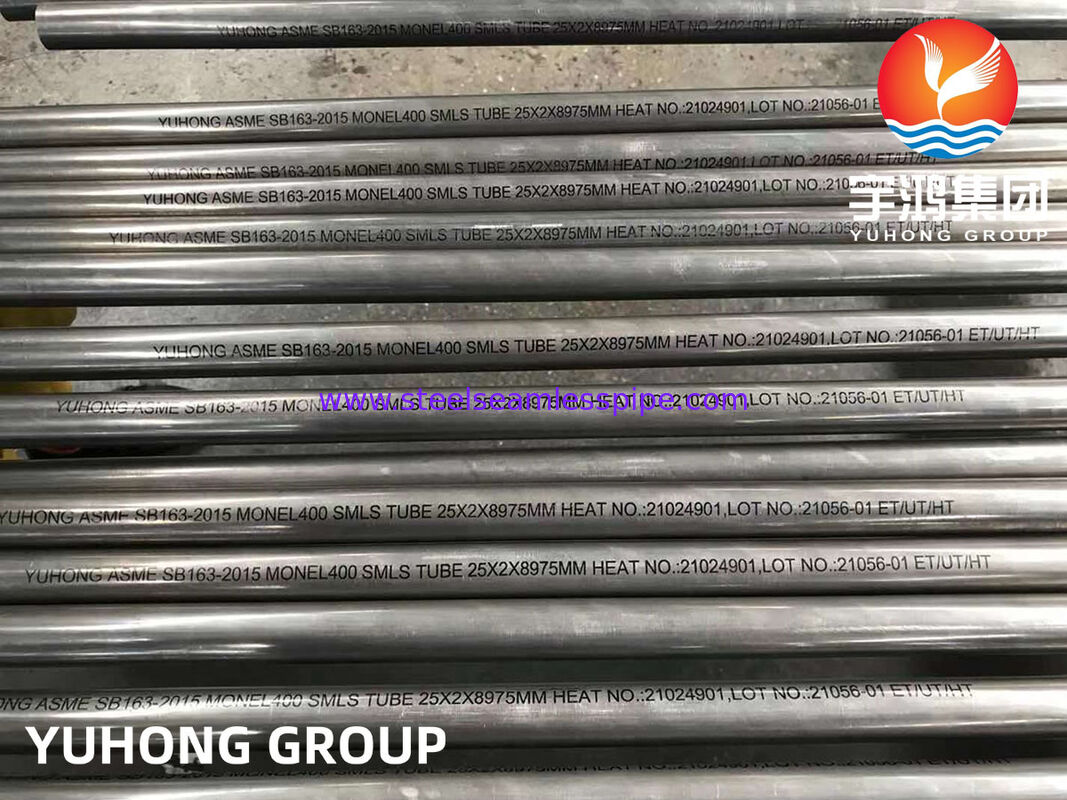

ASTM B163 Nickel Alloy tube seamless tube Monel 400 Heat Exchanger Condenser Application
Alloy 800 is an iron-nickel-chromium alloy with moderate strength and good resistance to oxidation and carburization at elevated temperatures. It is particularly useful for high-temperature equipment in the petrochemical industry because the alloy doesn't form the embrittling sigma phase after long time exposure at 1200°F (649°C). Excellent resistance to chloride stress-corrosion cracking is another important feature of alloy 800.
Alloy 800H is a solution heat treated (2100°F/1150°C), controlled-carbon version of alloy 800 with improved elevated temperature properties. It has improved creep and stress-rupture characteristics in the 1100°F (593°C) to 1800°F (982°C) temperature range.
Applications
Typical applications for alloy 800 and 800H are - Heat exchangers and process piping; carburizing fixtures and retorts; furnace components; electric range heating-element sheathing; extruded tubing for ethylene and steam methane reforming furnaces; ammonia effluent coolers.
The following table discusses the physical properties of INCOLOY alloy 800.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.94 gm/cm3 | 0.287 lb/in3 |
The mechanical properties of INCOLOY alloy 800 are tabulated below.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength(annealed) | 600 MPa | 87 ksi |
| Yield strength(annealed) | 275 MPa | 39.9 ksi |
| Elongation at Break | 45% | 45% |
Some of the designations used to denote INCOLOY alloy 800 are listed below:
| UNS N08800 | AMS 5766 | AMS 5871 | ASTM B163 | ASTM B366 |
| ASTM B407 | ASTM B408 | ASTM B409 | ASTM B514 | ASTM B515 |
| ASTM B564 | DIN 1.4876 |
| Incoloy | Incoloy 800 | Incoloy 800H | ||
| Element | Min | Max | Min | Max |
| Nickel + Cobalt | 30.0 | 35.0 | 30.0 | 35.0 |
| Cobalt | --- | 2.00 | --- | 2.00 |
| Chromium | 19.0 | 23.0 | 19.0 | 23.0 |
| Copper | --- | 0.75 | --- | 0.75 |
| Iron | Bal | Bal | ||
| Silicon | --- | 1.00 | --- | 1.00 |
| Manganese | --- | 1.50 | --- | 1.50 |
| Carbon | --- | 0.10 | 0.05 | 0.10 |
| Aluminum | 0.15 | 0.60 | 0.15 | 0.60 |
| Titanium | 0.15 | 0.60 | 0.15 | 0.60 |
| Sulfur | --- | 0.015 | --- | 0.015 |
| INCONEL SERIES: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Form and Condition | Tensile Strength | Yield Strength (0.2% Offset) | Elongation, % | Hardness, Rockwell | ||
| ksi | Mpa | Ksi | Mpa | |||
| Wire | ||||||
| cold drawn | ||||||
| Annealed | 80-120 | 550-830 | 35-75 | 240-520 | 45-20 | - |
| No. 1 Temper | 105-135 | 725-930 | 70-105 | 480-725 | 35-15 | - |
| Spring Temper | 170-220 | 1170-1520 | 150-210 | 1035-1450 | 5-2 | |
