| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | YUHONG |
| Chứng nhận: | ABS, GL, BV, PED, AD2000, GOST, TS, CCS, CNNC, ISO |
| Số mô hình: | ASTM A789, A790, UNS 32750, UNS 32760, UNS 31803 |
| Số lượng đặt hàng tối thiểu: | 500kg |
|---|---|
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | VỎ GỖ PLY |
| Thời gian giao hàng: | 10-15 ngày |
| Điều khoản thanh toán: | L/C, T/T |
| Khả năng cung cấp: | Theo yêu cầu của khách hàng |
| Tiêu chuẩn: | ASTM A789 , ASTM A790 , EN10216-5 | OD: | NPS 1/2 "đến 24" |
|---|---|---|---|
| WT: | Sch10s, 40s, 80, 100, 120, 160, XS, XXS | Kiểm tra: | ET, UT, HT , FE NỘI DUNG, PREN , PT |
| kiểu: | LIỀN MẶT / HÀN | Bưu kiện: | VỎ GỖ PLY |
| Làm nổi bật: | ASTM A789 duplex steel seamless tube,super duplex tube heat exchanger,S32760 duplex stainless steel tube |
||

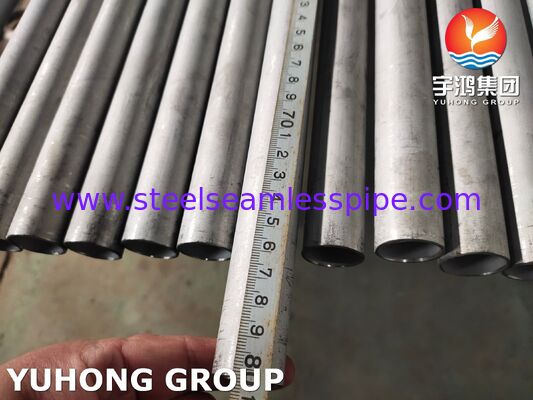

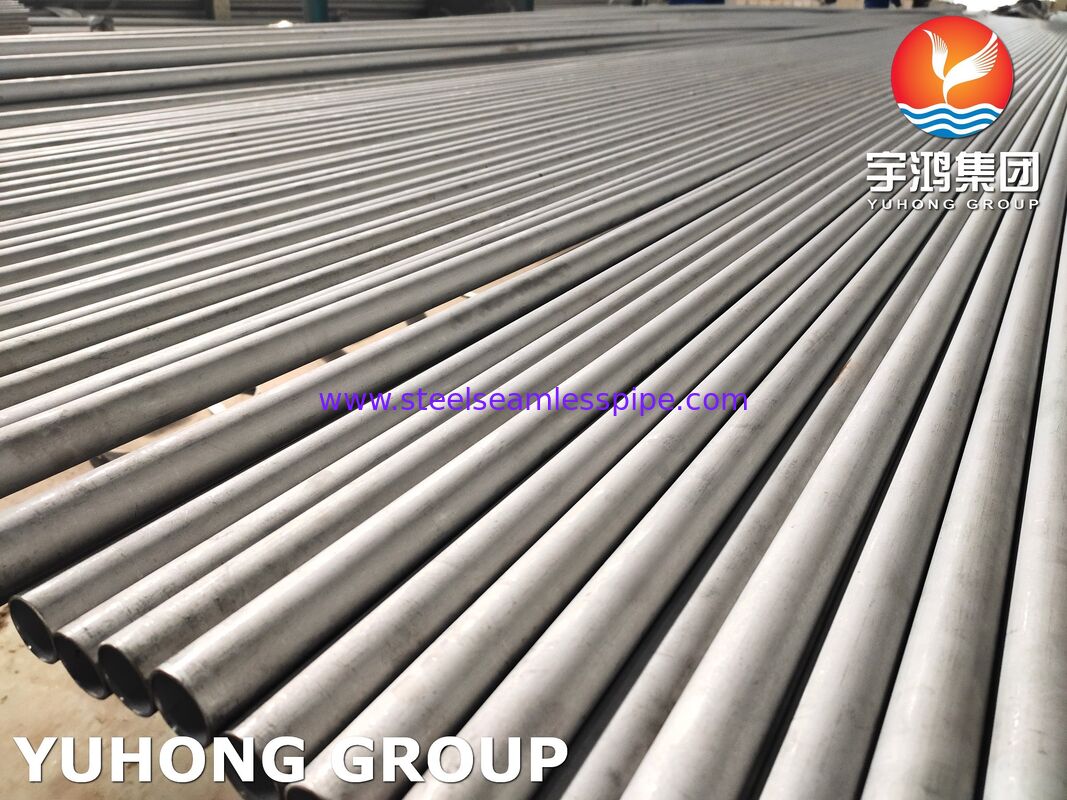

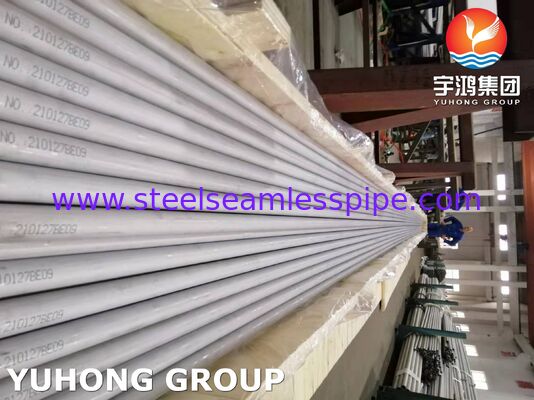

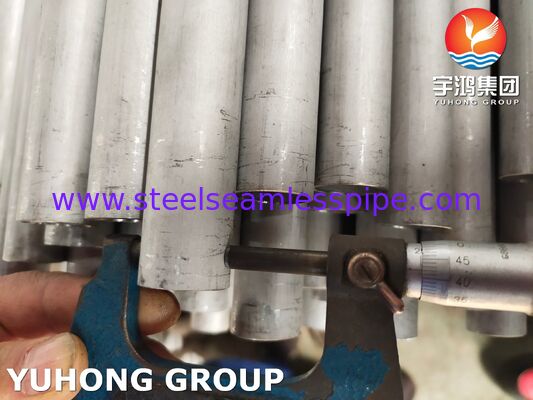

ASTM A789 S31803 S32205 S32750 S32760 Duplex Steel Seamless Tube ,Super Duplex tube Heat Exchanger Application
YUHONG GROUP deal with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 25 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.
Detailed Product Description
Super Duplex Stainless Steel Pipe ASTM A790 S31803 (2205 / 1.4462), UNS S32750(1.4410)
Standards: ASTM/ASME A789/SA789, A790/SA790,A450,A530
Material: UNS S31803(Cr22Ni5Mo3/1.4462)/2205,UNS S32750(1.4410),UNS S31500(Cr18NiMo3Si2),
UNS32760(1.4501)
Duplex steel Seamless Tube Chemical Composition:
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | N |
| UNS S32750 | 0.030 | 0.8 | 1.2 | 0.030 | 0.015 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | 0.24-0.32 |
| UNS S31803 | 0.030 | 1.0 | 2.0 | 0.020 | 0.020 | 21.0-23.0 | 4.5-6.5 | 2.5-3.5 | 0.08-0.20 |
| UNS S31500 | 0.030 | 1.0 | 1.2-2.0 | 0.030 | 0.030 | 18.0-19.0 | 4.5-5.5 | 2.5-3.5 | 0.05-0.10 |
Duplex Steel Seamless Tube Physical Propertiy:
| Grade | Y.S.MPa min | T.S.Mpa min | Elongation % | Hardness HRC |
| UNS S32750 | 550 | 800 | 15 | 20 |
| UNS S31803 | 450 | 620 | 25 | 20 |
| UNS S31500 | 440 | 630 | 30 | 20 |
Duplex Steel Seamless Tube Quality Test:
| Corrosion Test | Conducted only when specially requested by the client |
| Chemical Analysis | Test done as per required quality standards |
| Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
| Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end |
| Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
| Air Under Pressure Test | To check any evidence of air leakage |
| Visual Inspection | After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
Supplementary Testing :
Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
|
|
|
Duplex Stainless Steel Tube Application:
Chemical processing, Transport and Storage.
Oil and gas exploration and offshore rigs.
Oil and gas refining.
Marine environments.
Pollution control equipment.
Pulp and paper manufacturing
Chemical process Plant
