| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | YUHONG |
| Chứng nhận: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Số mô hình: | TP405, TP409, TP410, TP430, TP439, TP444, TP446, TP441 |
| Số lượng đặt hàng tối thiểu: | 100 KGS |
|---|---|
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | hộp gỗ dán |
| Thời gian giao hàng: | 30-60 ngày |
| Điều khoản thanh toán: | T/T, L/C |
| Khả năng cung cấp: | 1000 tấn mỗi tháng |
| Tiêu chuẩn: | ASTM A268, ASME SA268 | Lớp vật liệu: | TP405, TP409, TP410, TP430, TP439, TP444, TP446, TP441 |
|---|---|---|---|
| Đường kính ngoài: | 6,35-152,4mm hoặc theo yêu cầu | Độ dày của tường: | 0,5-25mm hoặc theo yêu cầu |
| Chiều dài: | 6 mét hoặc tùy chỉnh | Hoàn thiện bề mặt: | Được ủ sáng, ngâm và ủ, đánh bóng cơ học |
| Kết thúc: | Kết thúc trơn, Kết thúc vát | Ứng dụng: | Công nghiệp hóa dầu, sản xuất điện, nhà máy dầu khí, bộ trao đổi nhiệt, bình ngưng, v.v. |

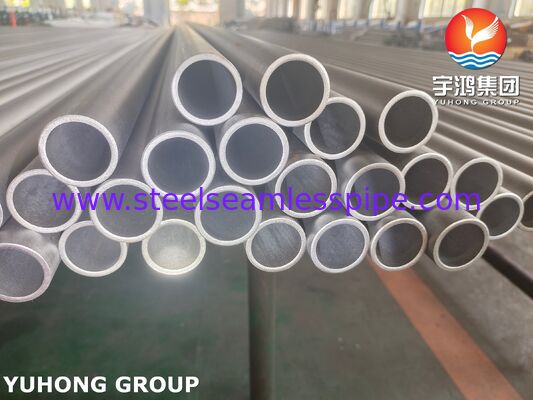

ASTM A268 TP405 Stainless Steel Seamless Tubes For Petrochemical Industry
ASTM A268 TP405 stainless steel tube is a ferritic and martensitic stainless steel tube for general corrosion-resistant and high-temperature service. TP405 grade corresponds to UNS S40500, and is a straight-chromium ferritic stainless steel grade with controlled aluminum content, which is designed to improve weldability and reduce brittleness compared to conventional 400-series stainless steels. Different from welded tubes, TP405 stainless steel seamless tubes are produced by hot rolling and cold drawing/rolling processes with no welding seam, delivering unified metallographic structure, superior pressure resistance, and consistent mechanical performance. SS405 grade is ferromagnetic, features moderate corrosion resistance, excellent high-temperature oxidation resistance, and good formability after annealing treatment. It is widely used in medium-temperature industrial systems requiring anti-oxidation, anti-corrosion and stable structural performance.
YUHONG GROUP specializes in TP405, TP410, TP430, etc. stainelss steel tubes complied with ASTM 268/ASME SA268 specification. The OD sizes range from 6.35mm to 152.4mm. As for length per tube, we generally provide 6 meters or cut into fixed length based on clients’ request.
Chemical Composition(%):
| C | Si | Mn | P | S | Cr | Ni | Al |
| ≤0.08 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 11.50 – 14.50 | ≤0.50 | 0.10 – 0.30 |
Mechanical Properties:
| Performance Index | Standard Value |
| Tensile Strength (Rm) | ≥415MPa |
| Yield Strength (Rp0.2) | ≥205MPa |
| Elongation(A) | ≥22% |
| Max Hardness (HRB) | ≤95HRB |
Key Features of ASTM A268 TP405 Seamless Tube:
Main Applications:
Standard Delivery Condition:
- Heat Treatment State: Fully annealed (bright annealing or ordinary annealing), eliminating internal stress, optimizing toughness and weldability, no quenched or tempered state for conventional delivery.
- Surface State: Pickled and descaled, no oxide scale, no rust, no cracks or folding defects; customized polishing/brushing available.
- End Treatment: Tube ends flat cut and deburred to remove burrs, convenient for on-site welding and assembly.
- Packaging: Waterproof paper wrapping + steel strip bundling + plastic pipe cap protection; plywood box packaging for precision small-diameter tubes, suitable for long-distance sea and land transportation.
