| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | YUHONG -ASME -BPVC-VIII |
| Chứng nhận: | ASME U, ASME R, ASME NB , ASME PP , ASME S |
| Số mô hình: | BỘ TRAO ĐỔI NHIỆT TEMA : AES, BET, BES, CHX, AET, BEU |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
|---|---|
| Giá bán: | 10000 ~ 5M usd |
| chi tiết đóng gói: | Vỏ gỗ / Pallet |
| Thời gian giao hàng: | 75---180 ngày |
| Điều khoản thanh toán: | L/C, T/T. |
| Khả năng cung cấp: | 600 bộ mỗi năm |
| Tiêu chuẩn bó ống trao đổi nhiệt: | TEMA, API 660, API 663 | Loại trao đổi nhiệt: | AES, CƯỢC, BES, AET, CHX, BEU |
|---|---|---|---|
| Chi tiết ống trao đổi nhiệt: | ASME SA213 TP316L 19.05X2.77X7315MM | Tấm ống trao đổi nhiệt: | ASME SA516 GR.70 + SS316L 3MM |
| Kênh bó ống: | ASME SA240 SS316L | Mặt bích chu vi bó ống: | ASME SA182 F316L |
| Vòi bó ống: | Mặt bích cổ hàn dài ASME SA182 F316L | ||
| Làm nổi bật: | ASME SA213 TP316L heat exchanger tube,ASME SA516 Gr.70 tube sheet heat exchanger,oil refinery heat exchanger tube bundle |
||

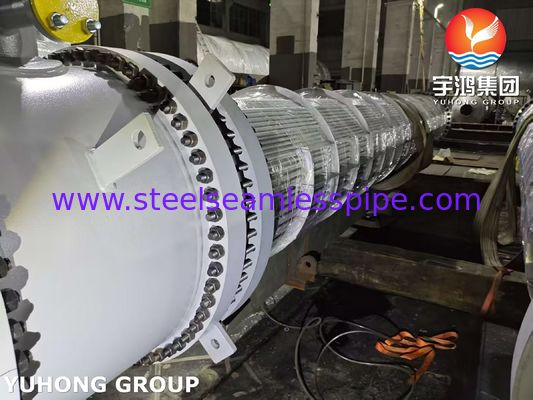

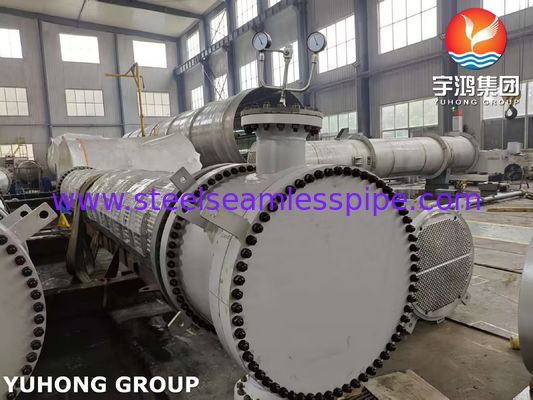

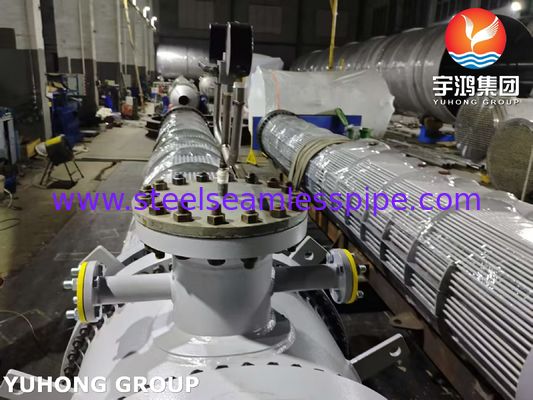

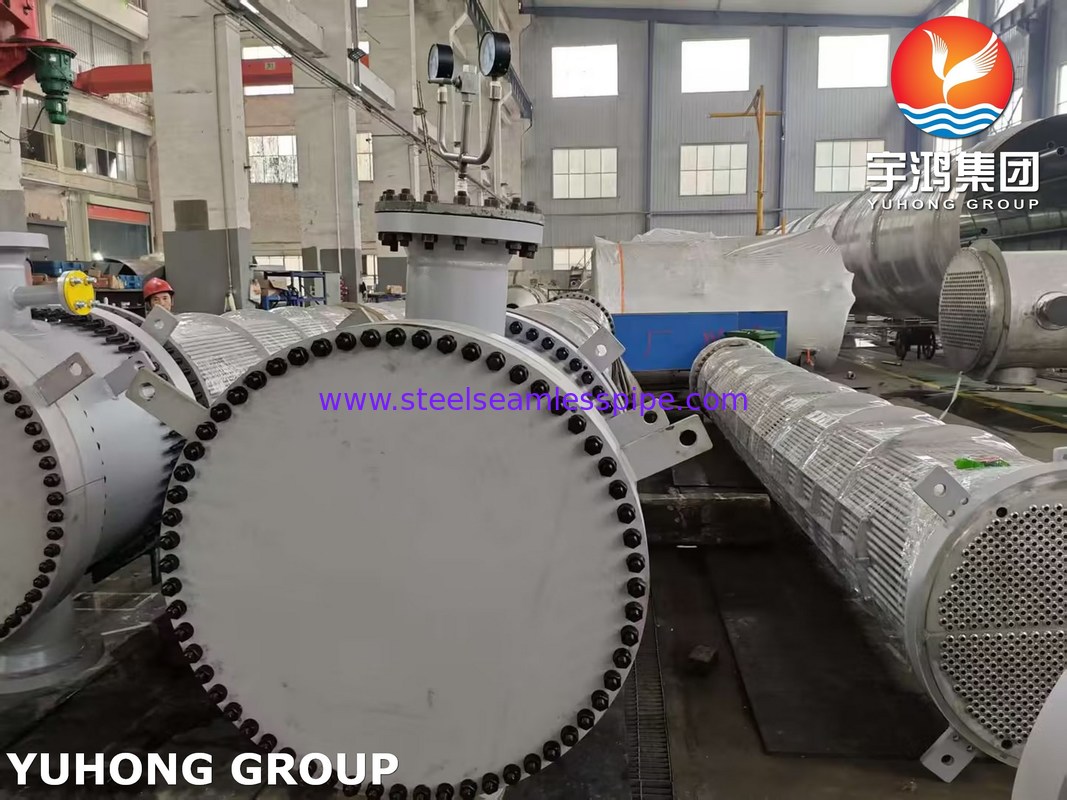

Heat Exchanger Tube Bundle For Oil Refinery Project in Saudi Arabia, ASME SA213 TP316L heat Exchanger with ASME SA516 Gr.70 TubeSheet
Yuhong Group start to support this project from 2023 Dec., the project end user below Aramco & Total join venture company : Satorp, due to old design has problem , final the old heat exchangers face leak during the application , and then Satorp company sent the new request with their new idea to replace the heat exchanger tube bundle , change the heat exchanger tube from ASME SA179 to ASME SA213 TP316L , and Tubeshee change from ASME SA516 GR.70 to ASME SA516 GR.70 + both sides with 3mm cladding SS316L ,our engineer team rechecked thermal calculation , GA drawing , Mechanical Calculation , Final we submit full set technical documents to Satorp , and all other procedure documents & ITP, WPS, WPQ, PQR, all depend on ARAMCO system , after 14 months documents adjust , final we match Satorp company documents request , and we also i becamse the AVL company in China to make service for Satorp .
1. Key Applications of Heat Exchanger Tube Bundles
The choice of design depends on thermal performance, maintenance needs, and cost:
| Type | Application | Advantages |
| Fixed Tube Sheet | Stable temperature/pressure (e.g., HVAC, light chemical processes). | Simple design, low cost. |
| U-Tube Bundle | High thermal expansion (e.g., steam-to-water exchangers). | Absorbs thermal stress; no expansion joint. |
| Floating Head | Large temperature differences (e.g., refinery crude oil pre-heaters). | Easy maintenance; handles expansion. |
| Multi-Pass | High heat transfer efficiency (e.g., chemical reactors, boilers). | Enhances turbulence and heat transfer. |
