| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | YUHONG |
| Chứng nhận: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Số mô hình: | ASME SB163 UNS N08810 Ống hợp kim niken liền mạch |
| Số lượng đặt hàng tối thiểu: | 500kg |
|---|---|
| chi tiết đóng gói: | Vỏ gỗ dán / Vỏ sắt / Bó có nắp nhựa |
| Thời gian giao hàng: | 7 ngày |
| Điều khoản thanh toán: | L/C, T/T |
| Tiêu chuẩn: | ASTM B163 / ASME SB163 | Vật liệu: | Incoloy 800H, UNS N08810 |
|---|---|---|---|
| OD: | 1/4" đến 4 1/2" (6,35mm đến 114,3mm) | WT: | BWG 25, 22, 20 18 ... 10 |
| Chiều dài: | Đơn ngẫu nhiên, đôi ngẫu nhiên & chiều dài cắt | Đầu ống: | Kết thúc đơn giản, kết thúc vát |
| Kiểu: | Liền mạch | Hình dạng: | Thẳng, uốn cong chữ U, cuộn dây |
| Ứng dụng: | Bình ngưng, Máy tỏa nhiệt, Kỹ thuật hàng hải, Đường ống dẫn hóa chất, v.v. | ||
| Làm nổi bật: | ASTM B163 Incoloy 800H seamless tube,UNS N08810 nickel alloy heat exchanger tube,Incoloy 800H nickel alloy tube |
||

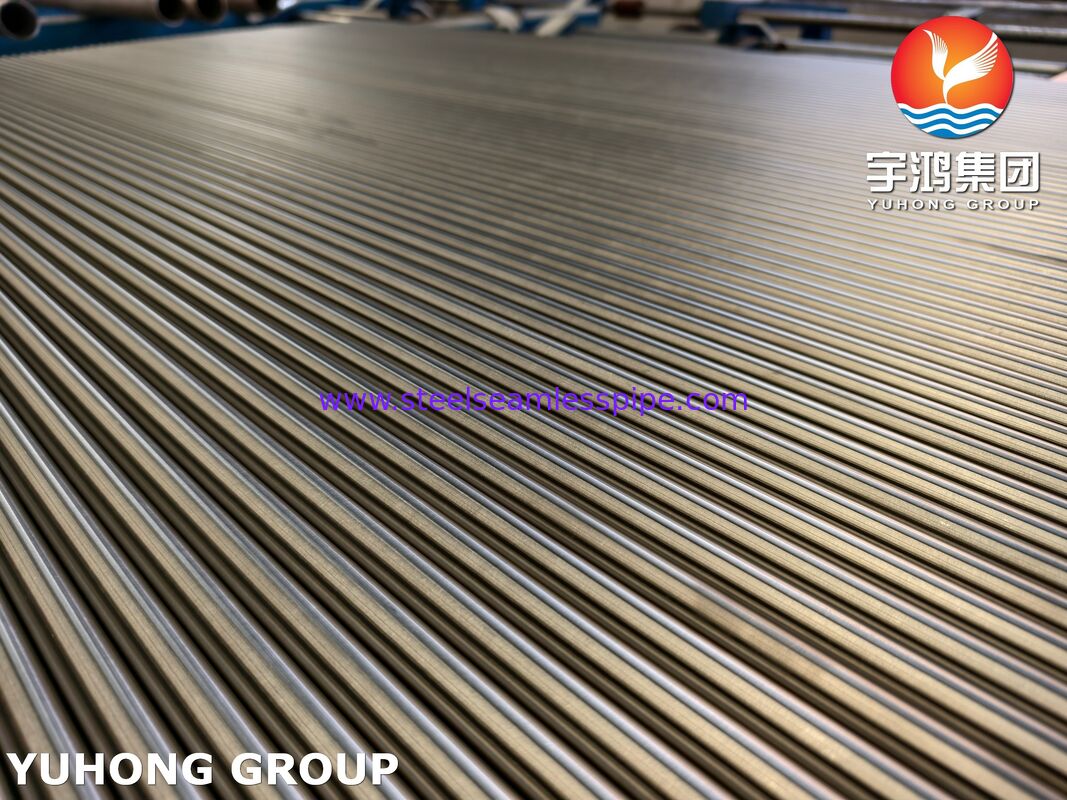

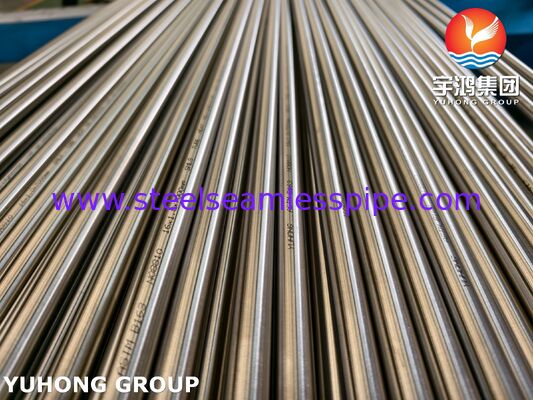

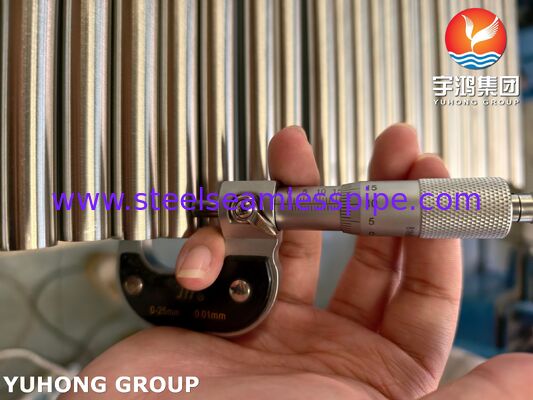

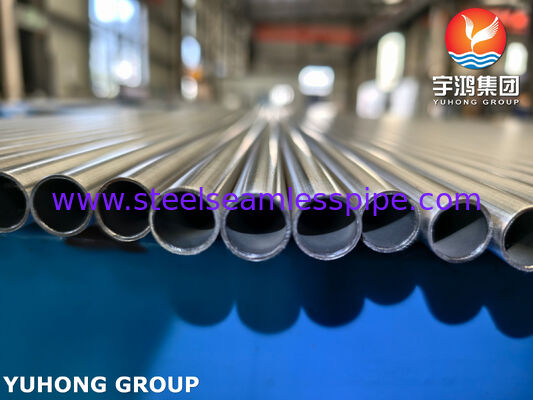

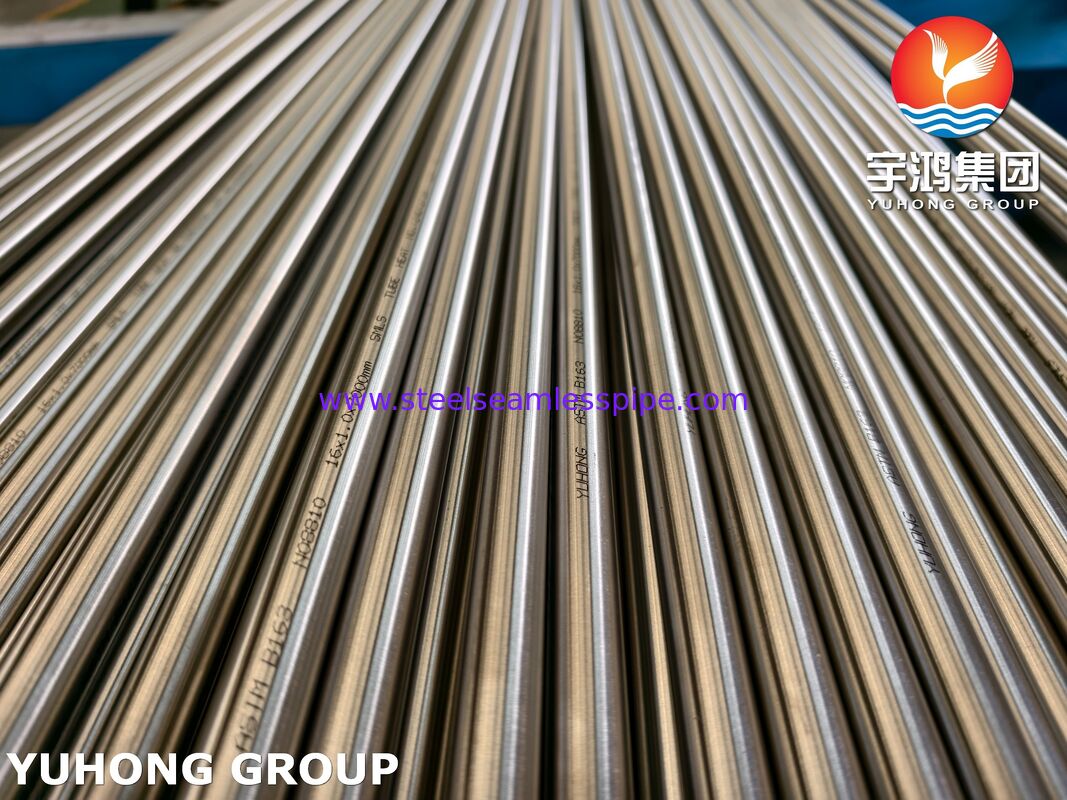

ASTM B163 / ASME SB163 UNS N08810 / Incoloy 800H Seamless Nickel Alloy Tube
ASTM B163/ASME SB163 is the standard specification for seamless nickel and nickel-alloy condenser and heat-exchanger tubes. UNS N08810, commonly known as Incoloy 800H, is a nickel-iron-chromium alloy optimized for high-temperature performance through controlled carbon content and stabilization. The material 800H / UNS N08810 is the go-to choice for high-temperature, high-stress applications where corrosion resistance, thermal stability, and long-term durability are essential. It bridges the gap between stainless steels and more expensive nickel alloys, offering exceptional performance in demanding thermal and chemical environments.
Why Choose SB163 Incoloy 800H Tube?
Seamless construction ensures higher pressure integrity and reliability
Compliant with ASME Boiler and Pressure Vessel Code for critical service
Suitable for both corrosive and high-temperature environments
Available in a range of sizes and schedules for custom engineering needs
ASTM B163 / ASME SB163 Incoloy 800H UNS N08810 Seamless Nickel Alloy Tube Chemical Composition %
| Material | Ni | Cr | Fe | C | Al | Ti |
| Incoloy 800 | 30.0-35.0 | 19.0-23.0 | ≥39.5 | ≤0.1 | 0.15-0.60 | 0.15-0.60 |
| Incoloy 800H | 30.0-35.0 | 19.0-23.0 | ≥39.5 | 0.05-0.10 | 0.15-0.60 | 0.15-0.60 |
| Incoloy 800HT | 30.0-35.0 | 19.0-23.0 | ≥39.5 | 0.06-0.10 | 0.25-0.60 | 0.25-0.60 |
ASTM B163 / ASME SB163 Incoloy 800H UNS N08810 Seamless Nickel Alloy Tube Mechanical Properties
| Material | Tensile Strength | Yield Strength | Elongation | Hardness |
| Incoloy 800 | 500 N/mm² | 210 N/mm² | 35% | 135-179HB |
| Incoloy 800H | 531 N/mm² | 200 N/mm² | 52% | 127HB |
| Incoloy 800HT | 531 N/mm² | 200 N/mm² | 52% | 127HB |
Mian Features of Incoloy 800/ 800H/ 800HT three alloys.
1. Corrosion Resistance
Excellent and consistent oxidation, carburization, and sulfidation resistance at high temperatures.
High nickel content provides strong resistance to stress corrosion cracking, especially in chloride environments.
Well-suited for aggressive chemical and high-temperature aqueous applications.
2. High-Temperature Stability
Maintains structural integrity under extreme heat through solid-solution strengthening and creep resistance.
High melting point and controlled thermal expansion prevent deformation.
Protects against degradation, ensuring durability in thermally demanding environments.
3. Resistance to Carburization
Specifically designed to inhibit carbon diffusion in high-temperature, carbon-rich atmospheres.
Optimized alloy composition and surface passivation provide long-term protection against carburization.
Preserves material integrity and extends service life in applications such as furnace components and reformer tubes.
Applications
Chemical Processing
Marine and offshore engineering
Aerospace
Heat Exchangers
Food & Beverage
Semiconductor Manufacturing.
