| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | YUHONG |
| Chứng nhận: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Số mô hình: | ASTM A335 P5 P9 P11 P22 TIP |
| Số lượng đặt hàng tối thiểu: | 500kg |
|---|---|
| chi tiết đóng gói: | Vỏ ply-wooden /hộp sắt |
| Thời gian giao hàng: | 7 ngày |
| Điều khoản thanh toán: | L/C, T/T. |
| Tên sản phẩm: | ống đinh tán | Vật liệu ống: | Thép carbon, thép không gỉ, thép hợp kim |
|---|---|---|---|
| Kiểu: | Hàn, Studded | OD ống: | 20mm đến 219mm |
| Độ dày ống: | 2mm đến 16mm | Chiều dài ống: | có thể tùy chỉnh |
| Độ dày vây: | 0,8mm đến 4mm | Mật độ vây: | 43 Vây trên mỗi mét đến tối đa 287 Vây trên mỗi mét |
| Chiều cao vây: | 0,25" (6,35mm) đến 1,5"(38mm) | Ứng dụng: | Máy làm mát không khí, Bộ trao đổi nhiệt, Máy hóa hơi, Bình ngưng |
ASTM A335 P5 P9 P11 P22 Studded Tube Heat Exchange System
What is a Studded Tube?
This is a specialized component designed for use in high-temperature and corrosive environments. Unlike finned tubes, which maximize convection surface area, studded tubes are primarily used to secure and protect refractory linings or to facilitate heating in certain furnace types.

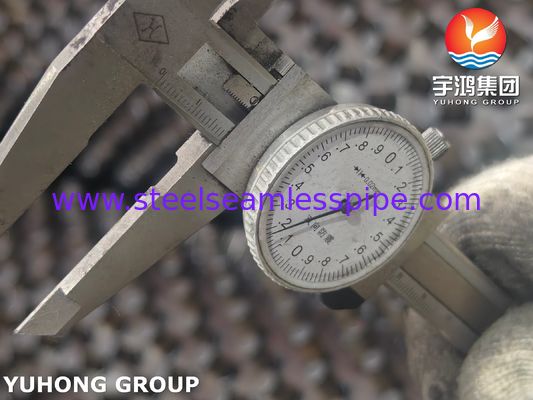

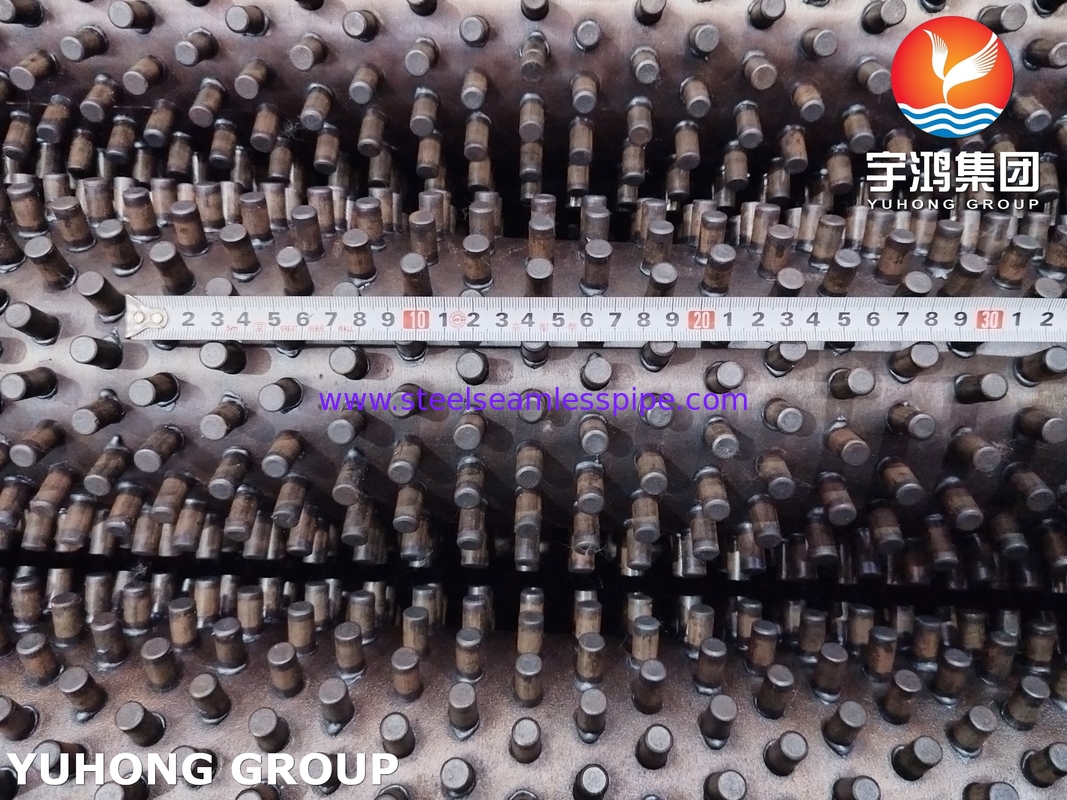

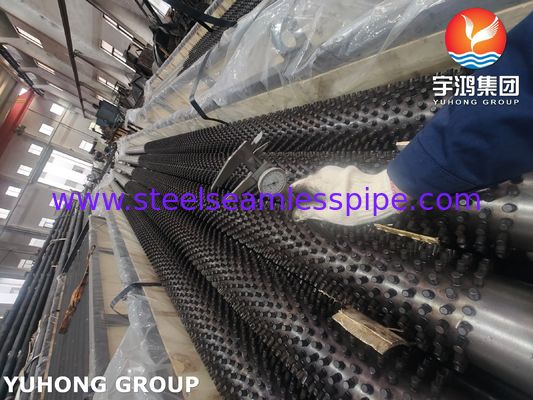

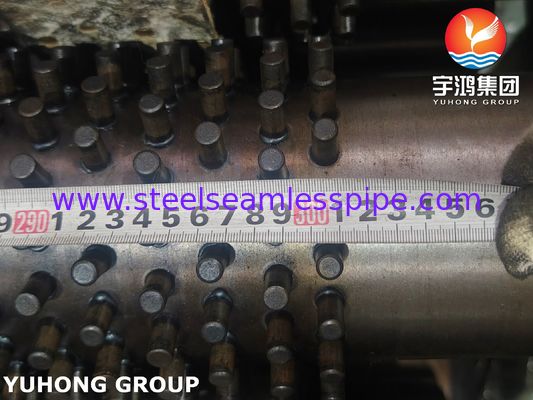

Studded tubes are manufactured by welding a series of studs (pins) to the outer surface of a base tube. These studs act as anchors, securing the castable refractory material to the tube surface.
ASTM A335 P5 base tube, combined with studs made from compatible materials, creates a robust system for lining furnaces, boilers, and reactors.
Studded Tube
|
Product: |
studded tubes, welded stud tubes,studded steel tubes,studded fin tubes |
|
Application: |
, generally in furnaces and boilers where the surface is exposed to a very corrosive environment and where very dirty gas streams require frequent or aggressive cleaning. |
|
Size: |
OD: 38 mm ~219 mm |
|
WT: 4.0 mm ~20 mm /Tube Length (Mtr) :≤ 15Mtrs |
|
|
Fin Height: 6.0 mm ~ 38 mm |
|
|
Base Tube(fin) Material: |
Carbon Steel |
|
|
Alloy Steel |
|
|
Stainless Steel |
Studded pipe size and material
| Tube O.D.: | 25~355.6 (mm) | 1”~14”(NPS) |
| Tube Wall Thk.: | 3.5~28.6 (mm) | 0.14”~1.1” |
| Tube Length: | ≤25,000 (mm) | ≤82 ft |
| Stud Dia.: | 6~25.4 (mm) | 0.23”~1” |
| Stud Height: | 10~50.8 (mm) | 0.4”~2” |
| Stud Pitch: | 8~30 (mm) | 0.3”~1.2” |
| Stud Shape: | Cylindrical, Elliptical, Round, Lens type | |
| Stud to tube surface angle: | Vertical, angular, staggered rows | |
| Stud Material: |
C.S. (most common grade is Q235B) S.S. (most common grade are AISI 304, 316, 409, 410, 321,347 ) A.S. |
|
| Tube Material: |
C.S. (most common grade is A106 Gr.B) S.S. (most common grade are TP304, 316, 321, 347 ) A.S.(most common grade are T/P5,9,11,22,91 ) |
|
| * This table is used as a general guide to our capabilities, please call us for any other customized cases. | ||
| Type | Description | Base tube | Fin specification (mm) | ||
| Type | O.D. (mm) | Fin pitch | Fin height | Fin thick | |
| Welding | HFW fin tube | 16-219 | 3-25 | 5-30 | 0.8-3 |
| H/HH Type Fin Tube | 25-63 | 8-30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8-30 | 5-35 | φ5-20 | |
Alloy Steel Chemical Compositions
| Grade | UNS Designation | Composition, % | ||||||
| Carbon | Manganese | Phosphorus, max | Sulfur, max | Silicon | Chromium | Molybdenum | ||
| P1 | K11522 | 0.10-0.20 | 0.30-0.80 | 0.025 | 0.025 | 0.10-0.50 | -- | 0.44-0.65 |
| P2 | K11547 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 |
| P5 | K41545 | 0.15MAX | 0.30-0.60 | 0.025 | 0.025 | 0.50MAX | 4.00-6.00 | 0.45-0.65 |
| P9 | K90941 | 0.15MAX | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 1.00-1.50 | 0.44-0.65 |
| P11 | K11597 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| P12 | K11562 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.5MAX | 0.80-1.25 | 0.44-0.65 |
| P15 | K11578 | 0.05-0.15 | 0..30-0.60 | 0.025 | 0.025 | 1.15-1.65 | -- | 0.44-0.65 |
| P21 | K31545 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50MAX | 2.65-3.35 | 0.80-1.06 |
| Grade | Chemical Composition(%) | ||||||
| C | Mn | P | S | Si | Cr | Mo | |
| P5 | ≤0.015 | 0.30-0.60 | ≤0.025 | ≤0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 |
| Grade | Mechanical property | ||
| Tensile Strength(MPa) | Yield Strength(MPa) | Elongation(%) | |
| P5 | ≥415 | ≥205 | ≥30 |
Applications
Studded tubes are essential in the most demanding, high-temperature industrial processes:
Petroleum refining:
Fluid catalytic cracking (FCC) units: Cyclones and plenums in reactors and regenerators.
Steam methane reformer (SMR) furnaces: Components of the radiant walls and roof of the furnace, where process tubes are exposed to intense flames.
Chemical processing: Used in ethylene cracking furnaces and other high-temperature reactors.
Power Generation:
