| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Yuhong |
| Chứng nhận: | DNV, BV, PED, LR, ABS, TS, CCS |
| Số mô hình: | ASTM A179 |
| Số lượng đặt hàng tối thiểu: | 100kg |
|---|---|
| Giá bán: | Có thể đàm phán |

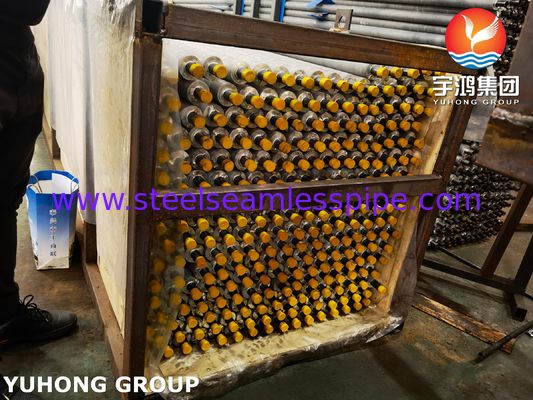

| chi tiết đóng gói: | Case-Wooden Case / Iron Case / Gói có nắp nhựa |
| Điều khoản thanh toán: | L/C, T/T. |
| Khả năng cung cấp: | 1000 tấn/tháng |
| Bưu kiện: | Trường hợp ply-woonden với vỏ sắt | Lớp vây: | Al 1060 |
|---|---|---|---|
| Chiều cao vây: | 15.875mm | Tiêu chuẩn ống cơ sở: | ASME SA179 |
| Chiều dài ống cơ sở: | tùy chỉnh | Sản phẩm: | ống vây |
| Ứng dụng: | Máy trao đổi nhiệt, máy làm mát không khí | Loại vây: | Đùn ra |
| Làm nổi bật: | ASTM A179 carbon steel fin tube,extruded fin tube for cooler,Al1060 fin fan cooler tube |
||

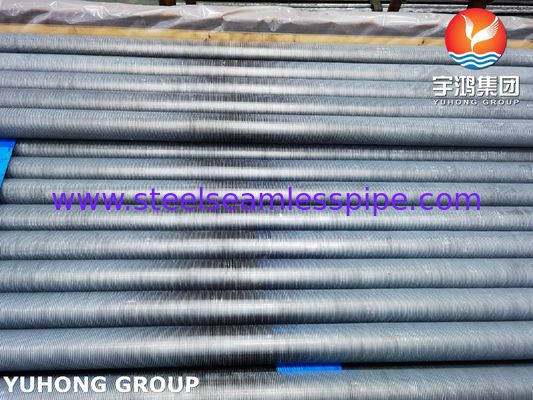

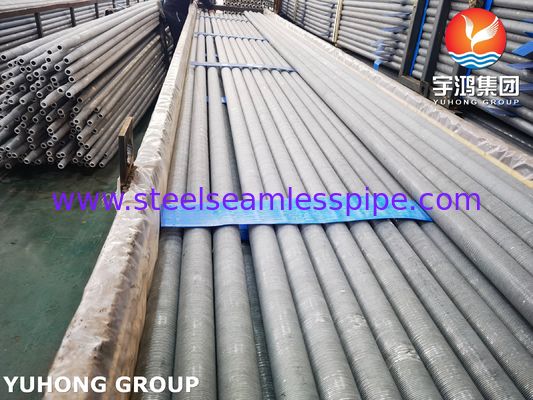

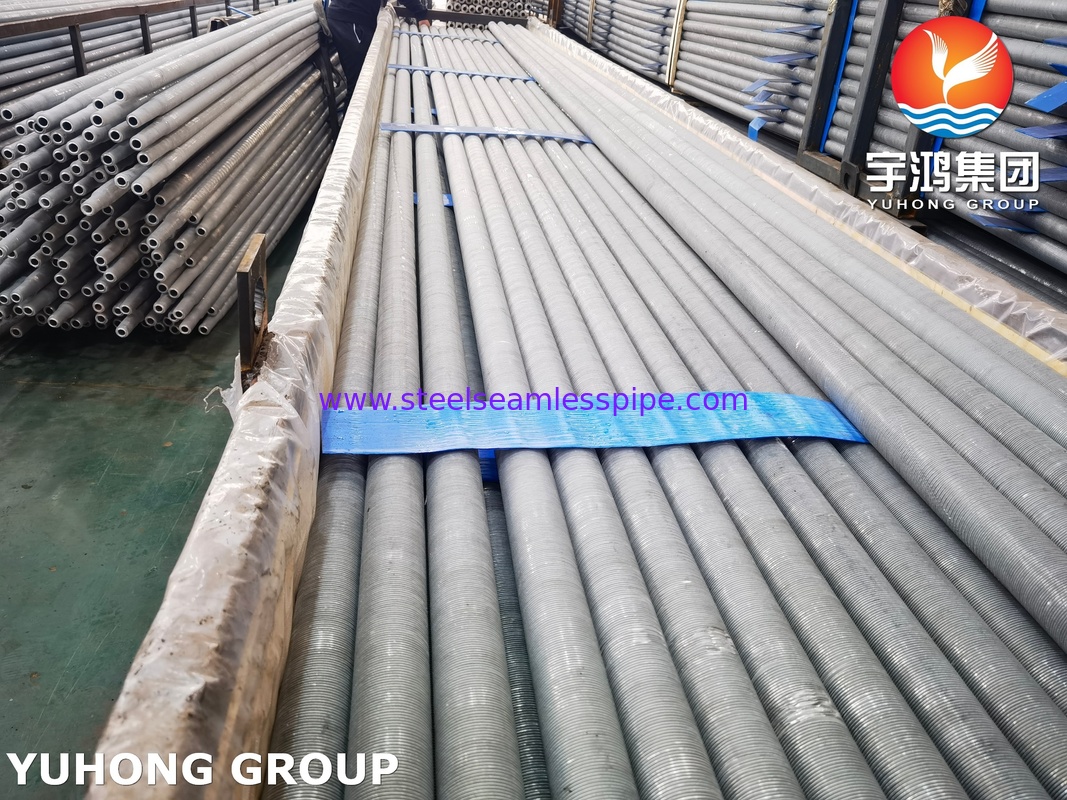

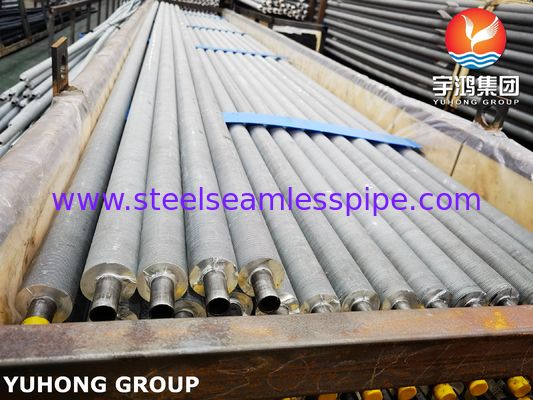

ASTM A179 Carbon Steel Fin Tube Extruded Type With Al1060 For Fin Fan Cooler
Product Overview:
This fin tube consists of a seamless ASTM A179 carbon steel base tube with extruded Aluminium 1060 fins. The extrusion process forms an integral bond between the fins and the tube, ensuring excellent heat transfer performance, mechanical durability, and long-term reliability in air-cooled heat exchanger systems.
ASTM A192 / A192M : Seamless Carbon Steel Boiler Tubes for High-Pressure Service
ASTM A210 / A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes
ASTM A179 / A179M : Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes
Tube Type:Seamless (Cold Drawn)
Ends:Plain ends or bevel ends.
Surface protection:black painting,anti-rust oil or varnish.
Detail:
| General extrusion production capacity | General specifications of Extruded Fin Tubes/Embedded |
| Facility: 20 finning machines. Daily capacity up to 7600 meters. Extruded fins type: solid plain and serrated. |
Tube OD: 12mm min.~50.8mm(2'') max. Tube Length: 32 meters max. Fin Height: 25.4 mm max. Fin Thickness: appr. 0.2/0.3/0.4mm/0.5mm/0.6mm Fin Pitch: 1.5mm min. |
| Property | Content (wt%) |
|---|---|
| Carbon (C) | 0.06 – 0.18 |
| Manganese (Mn) | 0.27 – 0.63 |
| Phosphorus (P) | ≤ 0.035 |
| Sulfur (S) | ≤ 0.035 |
| Iron (Fe) | Balance |
| Property | Content (wt%) |
|---|---|
| Aluminium (Al) | ≥ 99.6 |
| Copper (Cu) | ≤ 0.05 |
| Iron (Fe) | ≤ 0.35 |
| Silicon (Si) | ≤ 0.25 |
| Zinc (Zn) | ≤ 0.05 |
| Manganese (Mn) | ≤ 0.03 |
| Magnesium (Mg) | ≤ 0.03 |
| Titanium (Ti) | ≤ 0.03 |
| Others (Total) | ≤ 0.15 |
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 325 |
| Yield Strength (MPa) | ≥ 180 |
| Elongation (%) | ≥ 35 |
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 60 – 100 |
| Yield Strength (MPa) | ≥ 20 |
| Elongation (%) | ≥ 23 |
| Brinell Hardness (HB) | ~ 27 |
Fin Fan Coolers (Air Coolers) in refineries, petrochemical plants, and power plants
Air-cooled Heat Exchangers for oil, gas, and chemical industries
Process Cooling Systems in fertilizer, LNG, and hydrogen plants
Convection Cooling in power generation and industrial boilers
Strong metallurgical bond between fins and tube, resistant to thermal cycling
High thermal conductivity from Aluminium 1060 fins
Robust carbon steel base tube (ASTM A179) for high strength and pressure resistance
Longer service life and easier cleaning compared with mechanical fin types (L/LL/KL/G)
Cost-effective solution for large-scale air cooling system
